Weight: 100g/m2-1000g/m2
Width: 1m-6m
Length: 30m-150m
Color: White, black, orange, green
Brand: BPM Geosynthetics

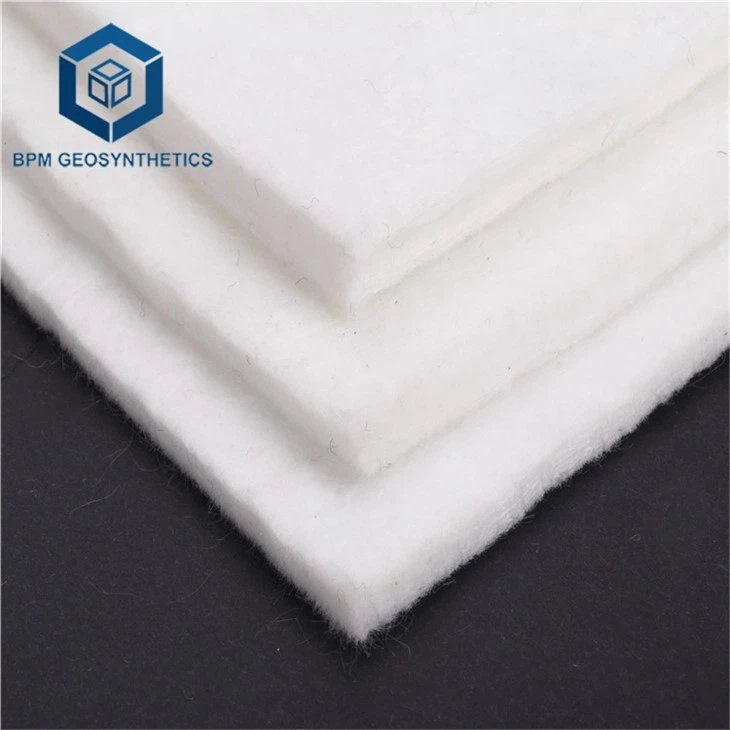

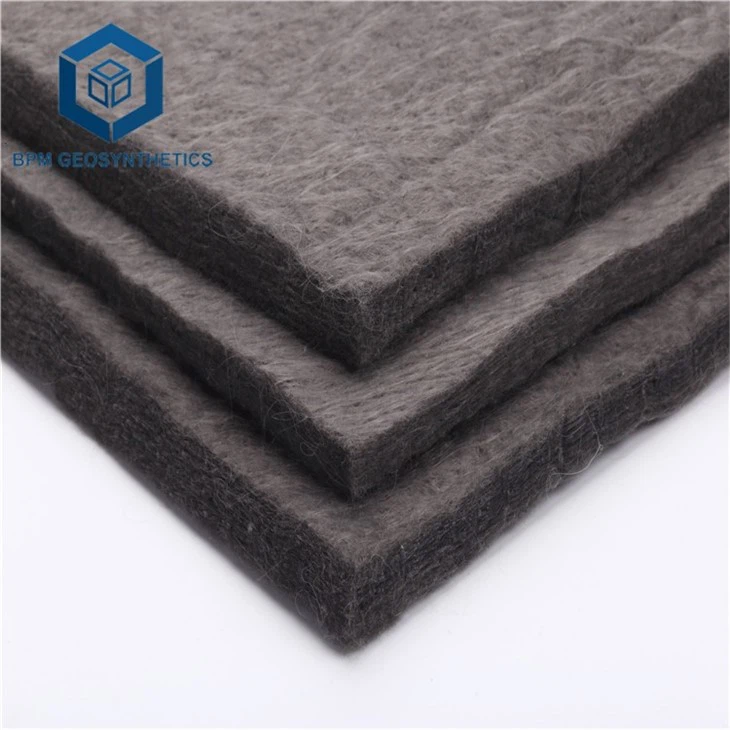

Thermal Bonded GeotextileGeotextile material made from polyester and polypropylene filament is crucial and can be produced using needle punching and thermally bonding processes. Through the combination of needle punching and spun-bonded technology processes, a highly important type of geotextile material can be achieved.non woven fabric The material possesses outstanding features including excellent permeability, high elongation, durable CBR puncture resistance, high tensile strength, and UV stabilization.
Geotextile fabric made of non-woven materials has emerged as a highly adaptable and economical solution for soil modification. This material is commonly used for a variety of applications, such as erosion control, separation, filtration, drainage and reinforcement. The versatility of non-woven geotextile fabric has made it one of the most sought after materials in the construction industry. It has a proven track record of success, with countless projects showcasing its effectiveness in numerous environments. If you're considering a ground modification project, non-woven geotextile fabric is definitely an option worth exploring.non woven needle puched geotextile fabricCoastal, hydraulic, civil, geotechnical, and environmental engineering have all experienced a fast-paced expansion, with BPM non-woven making its mark in these fields.Thermal bonded PET geotextile GB/17638-2017，。，，。
Benefits
The non-woven geotextile exhibits excellent drainage performance and vertical permeability thanks to its thick structure and reinforcement through needling. It effectively allows water to drain through its plane and facilitates vertical water penetration.
The non-woven PET geotextile boasts excellent resistance against ultraviolet radiation, making it highly durable and reliable for extended periods of use. Its anti-ultraviolet performance ensures that it can withstand exposure to the sun and other radiations, providing long-lasting service even in harsh environmental conditions.
Non-woven geotextiles boast exceptional corrosion resistance capabilities, making them highly suitable for use in various applications. These materials can resist a variety of chemical substances such as acid, alkali, gasoline, and diesel that typically reside within the soil. As such, non-woven geotextiles are incredibly versatile and play a significant role in protecting structures and the environment from various forms of corrosion.
| Test | Units | BPM100 | BPM150 | BPM200 | BPM250 | BPM300 | BPM350 | BPM400 | BPM450 | BPM500 | BPM600 | BPM800 | |
| Mechanical Properties | Tensile Strength | kN/m | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 |
| (MD and XMD) | |||||||||||||
| Trapezoidal | |||||||||||||
| Tear Strength ≥ | kN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | |
| (MD and XMD) | |||||||||||||
| CBR Burst | kN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
| Strength ≥ | |||||||||||||
| Weight | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |
| Weight Variation | % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| Thickness | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
| Width Variation | % | -0.5 | |||||||||||
| Elongation at Break | % | 25 ~ 100 | |||||||||||
